Hydraulic Disc Brakes
for MTB, E-Bike & Road Bicycle
Projects
TESNO supplies hydraulic disc brake systems and related components for mountain bikes, e-bikes, road bikes and children’s bicycles.
Compare 2-piston and 4-piston options, 140–203 mm rotor configurations, IS, Post Mount and Flat Mount calipers, different lever designs, metallic brake pads and application-specific functions before requesting a model match.
Hydraulic Disc Brake Systems by Bicycle Application
TESNO’s hydraulic disc brake catalog covers e-bike, MTB, road-bike and children’s bicycle applications. Model selection can be based on piston configuration, lever length, mounting interface, rotor diameter, pad type, sensor requirements and special functions such as a free-angle hose connector or parking control.

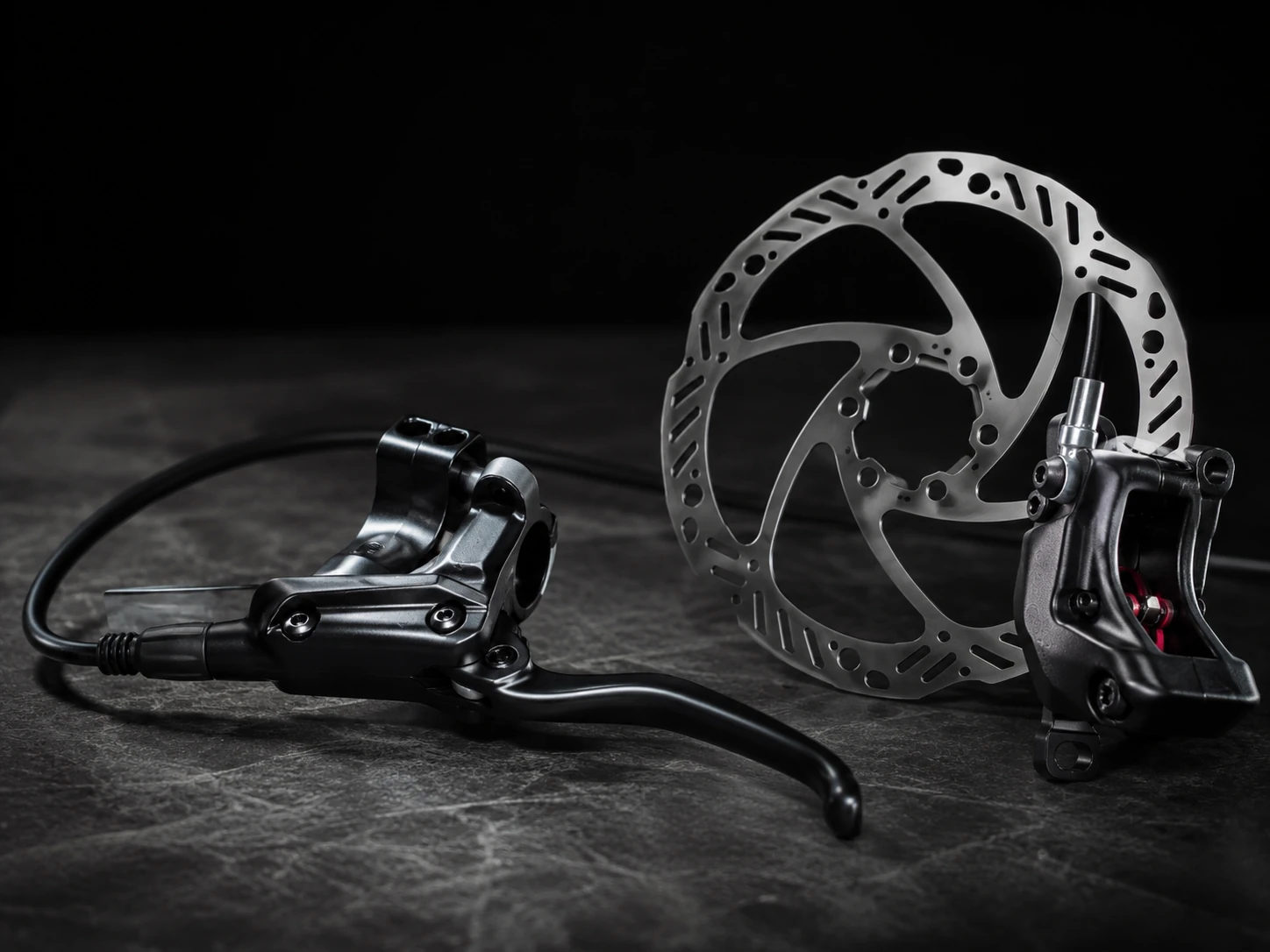

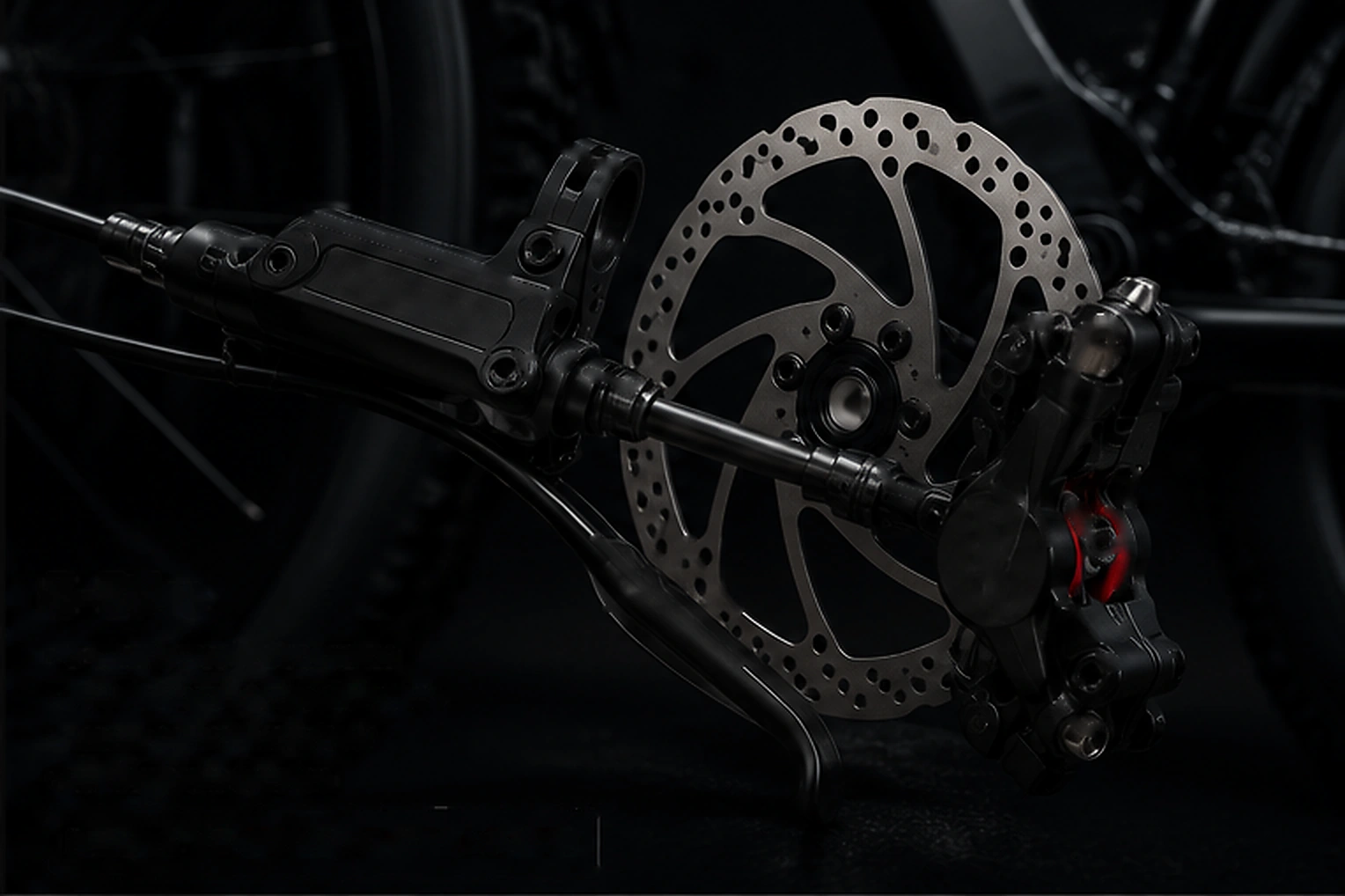

E-Bike Hydraulic Disc Brakes
- 8 catalog models
- 2-piston, 4-piston and selected 2P/4P configurations
- 140–203 mm rotor options
- Sensor-control lever options
- W2P free-angle hose connector on selected models
- Parking function available on HD-E900

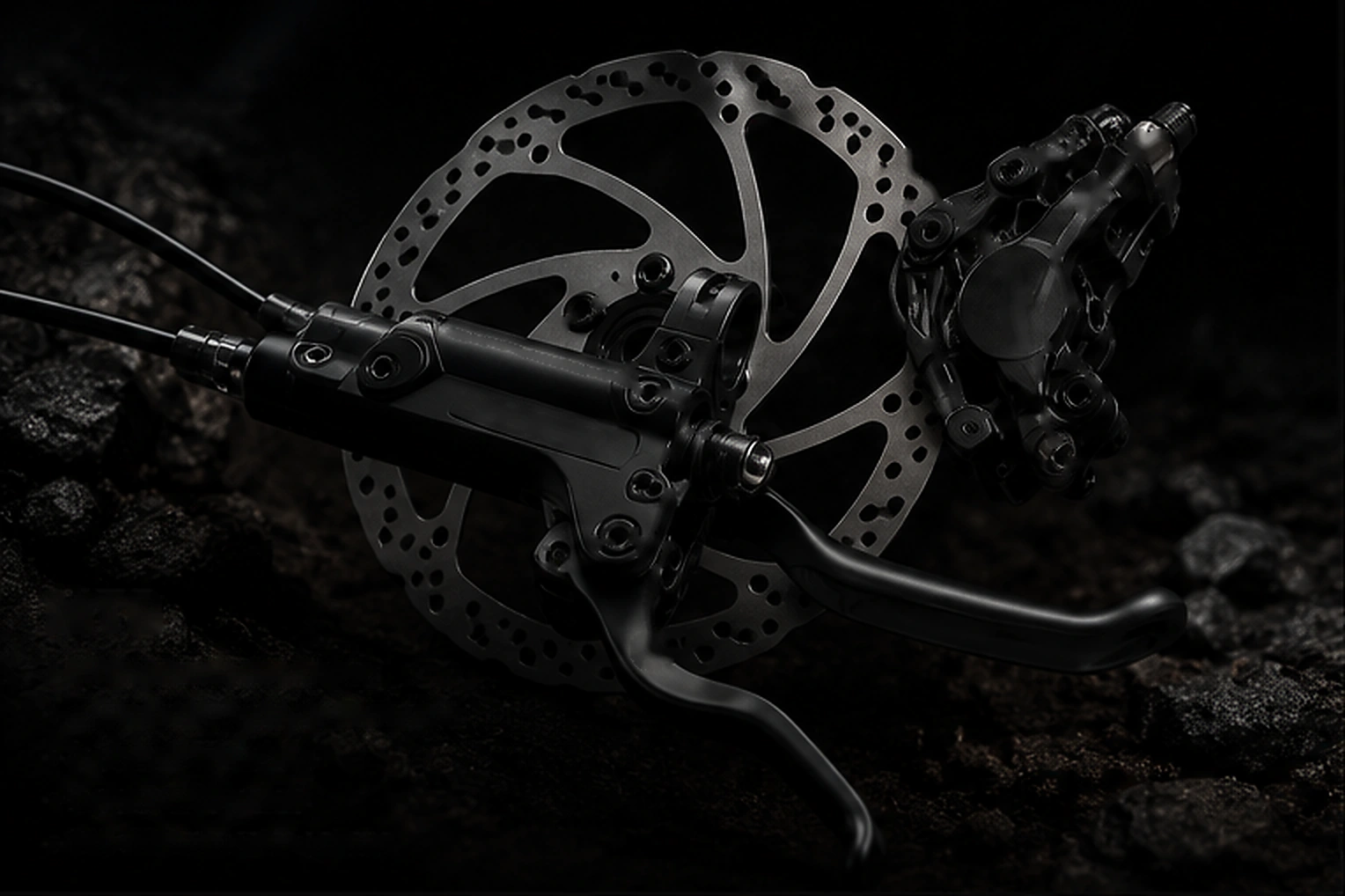

MTB Hydraulic Disc Brakes
- 8 catalog models
- 2-piston and 4-piston configurations
- 140–203 mm rotor options
- IS or Post Mount
- 2-finger and 3-finger lever options
- Selected W2P hose connector models

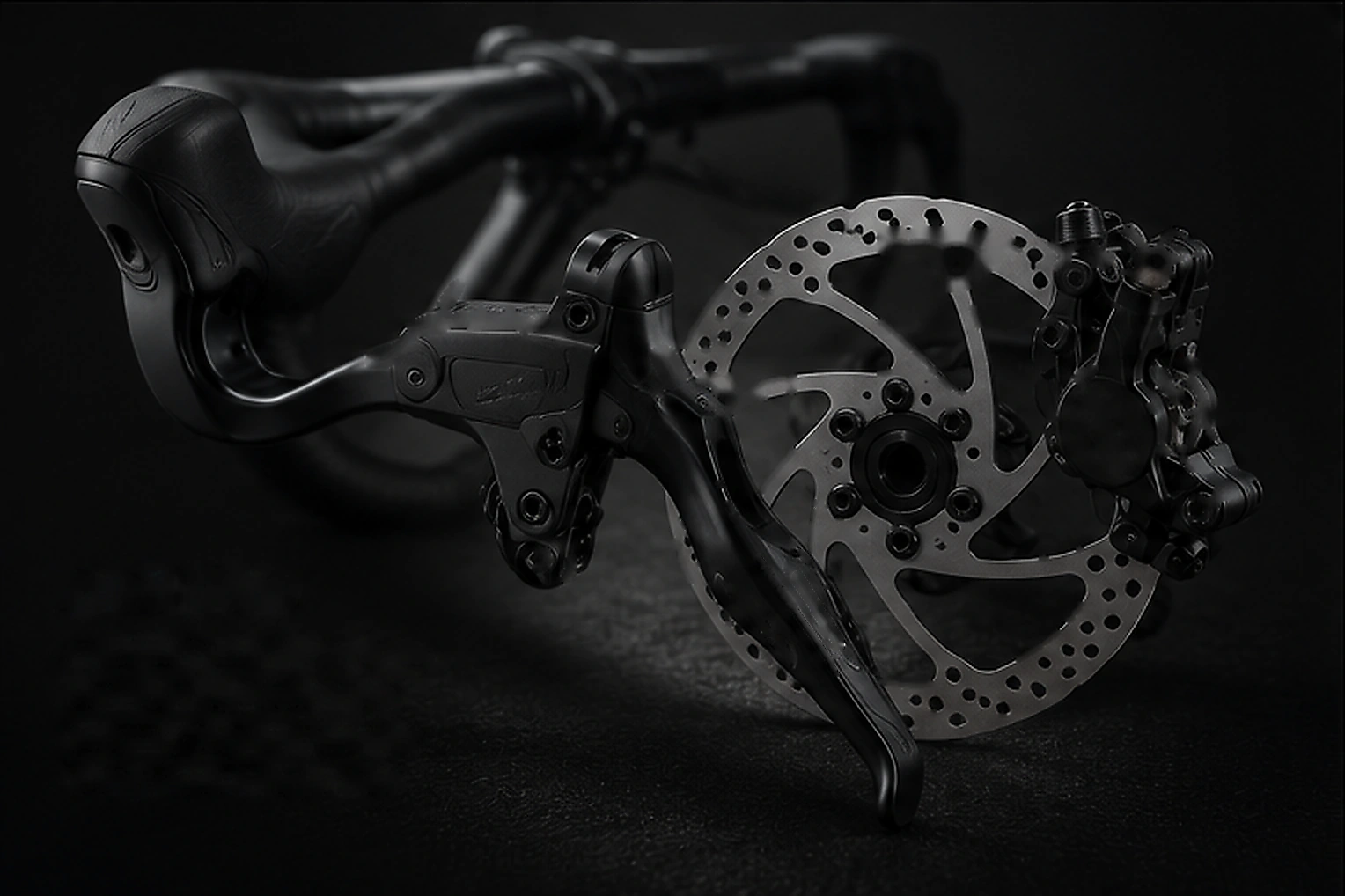

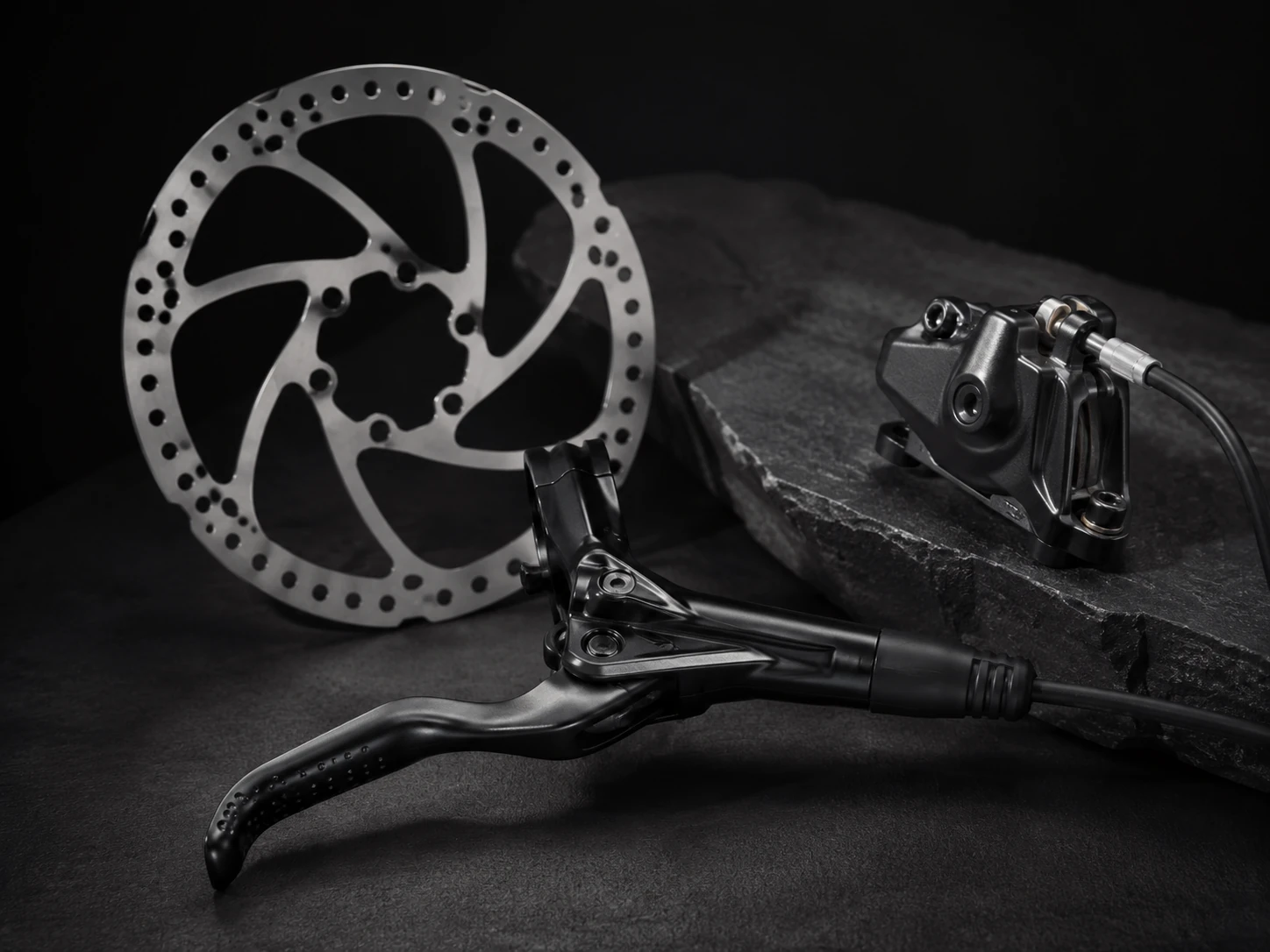

Road Bike Hydraulic Disc Brakes
- 4 catalog models
- 140 mm and 160 mm rotor configurations
- Flat Mount and IS/Post Mount options
- 2-finger and 3-finger lever designs
- P08 metallic compound pads

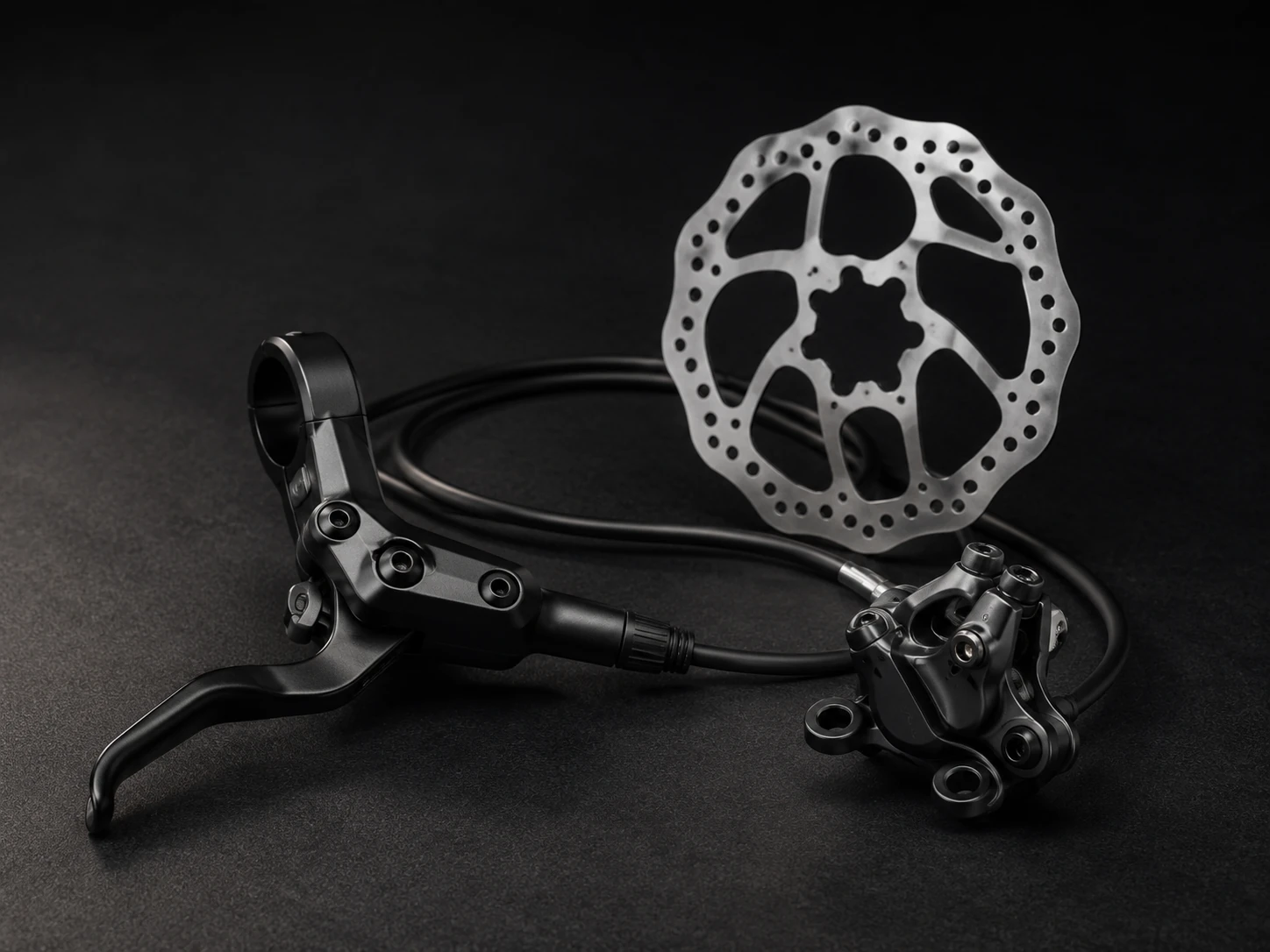

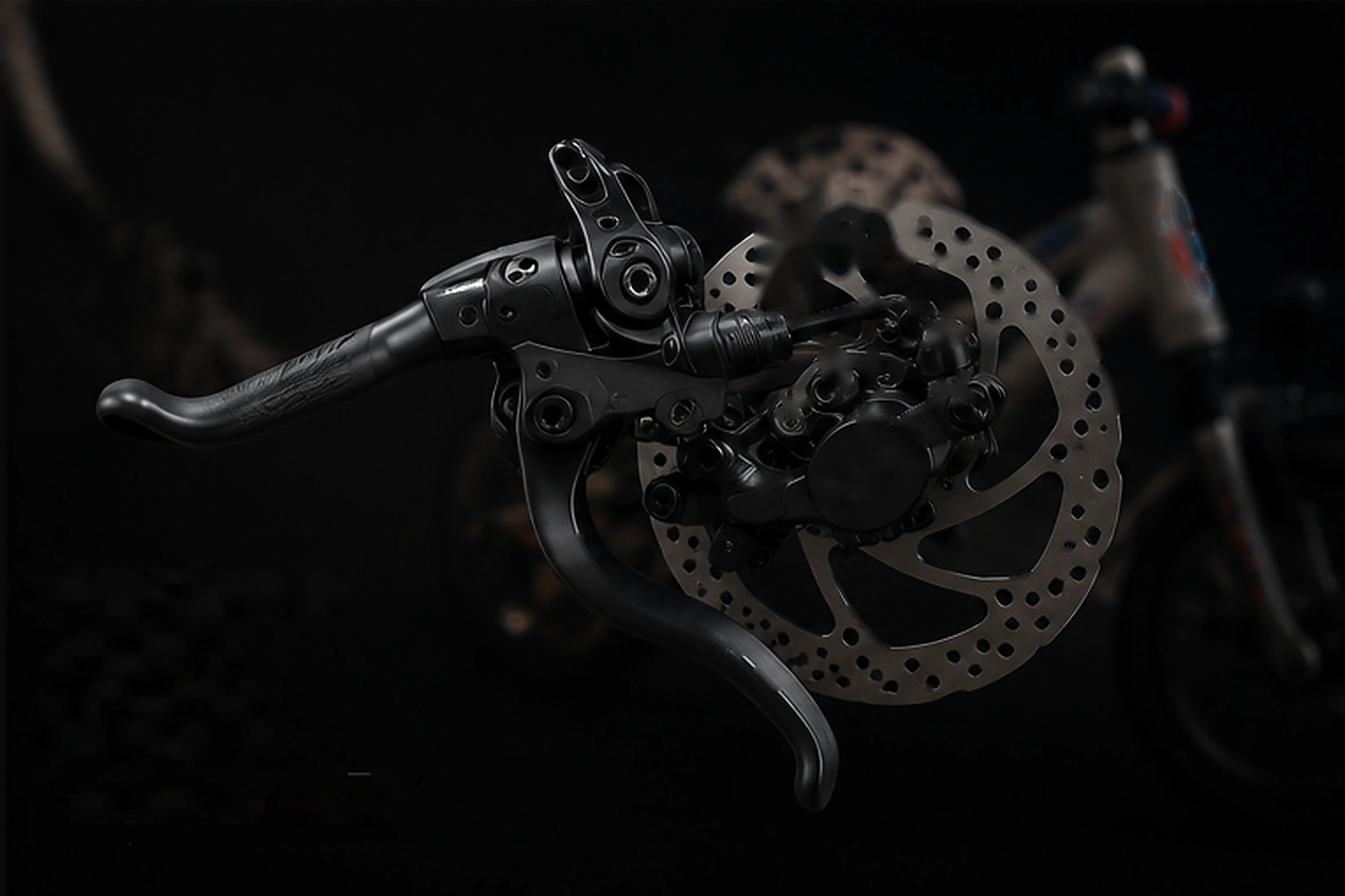

Kids’ Bicycle Hydraulic Disc Brake
- HD-C220
- Compact 2-finger lever
- 2-piston caliper
- 140 mm and 160 mm rotor options
- IS or Post Mount
Compare TESNO Hydraulic Disc Brake Models
Note: The tables below are preliminary model-selection references. Final hose length, front or rear configuration, lever orientation, kit contents, packaging and compatibility must be confirmed before quotation.
E-Bike Series
| Model | Piston | Lever | Mount | Rotor F/R | Pad | Special feature |
|---|---|---|---|---|---|---|
| HD-E860XP | 4 piston | 4 finger | IS/Post | 180/203 mm | P15 | Sensor control |
| HD-E860 | 4 piston | 4 finger | IS/Post | 140/160/180/203 mm | P15 | Sensor control |
| HD-E850 | Not stated | 4 finger | IS/Post | 140/160/180/203 mm | P08 | W2P connector |
| HD-E800 | 2 piston | 4 finger | IS/Post | 140/160/180/203 mm | P08 | Sensor control |
| HD-E620 | 4 piston | 3 finger | IS/Post | 140/160/180/203 mm | P08 | E-bike application |
| HD-E550 | Not stated | 3 finger | IS/Post | 140/160/180/203 mm | P08 | W2P connector |
| HD-E500 | 2 piston | 3 finger | IS/Post | 140/160/180/203 mm | P08 | E-bike application |
| HD-E900 | 2P / 4P option | 4 finger | IS/Post | 140/160/180/203 mm | P08 | Sensor, W2P, parking function |
Road Series
| Model | System wording | Lever | Mount | Rotor F/R | Pad | Fluid |
|---|---|---|---|---|---|---|
| HD-R621 | Dual piston system | 2 finger | Flat Mount | 140/160 mm | P08 | Mineral oil |
| HD-R601 | Dual piston system | 3 finger | Flat Mount | 140/160 mm | P08 | Mineral oil |
| HD-R521 | Dual piston system | 2 finger | IS/Post | 140/160 mm | P08 | Mineral oil |
| HD-R501 | Dual piston system | 3 finger | Flat Mount | 140/160 mm | P08 | Mineral oil |
MTB / General Series
| Model | Piston | Lever | Mount | Rotor F/R | Pad | Special feature |
|---|---|---|---|---|---|---|
| HD-M620 | 4 piston | 2 finger | IS/Post | 140/160/180/203 mm | P08 | Mineral oil |
| HD-M600 | 4 piston | 3 finger | IS/Post | 140/160/180/203 mm | P08 | Mineral oil |
| HD-M650 | Not stated | 3 finger | IS/Post | 140/160/180/203 mm | P08 | W2P connector |
| HD-M550 | Not stated | 3 finger | IS/Post | 140/160/180/203 mm | P08 | W2P connector |
| HD-M500 | 2 piston | 3 finger | IS/Post | 140/160/180/203 mm | P08 | Mineral oil |
| HD-M520 | 2 piston | 2 finger | IS/Post | 140/160/180/203 mm | P08 | Mineral oil |
| HD-M200 | 2 piston | 3 finger | IS/Post | 140/160/180/203 mm | P08 | Two-piece bracket body |
| HD-M220 | 2 piston | 2 finger | IS/Post | 140/160/180/203 mm | P08 | Two-piece bracket body |
Kids Series
| Model | Piston | Lever | Mount | Rotor F/R | Pad | Fluid |
|---|---|---|---|---|---|---|
| HD-C220 | 2 piston | 2 finger | IS/Post | 140/160 mm | P08 | Mineral oil |
Not Sure Which Model Fits Your Bicycle Project?
Hydraulic Disc Brake Components and Configuration Options

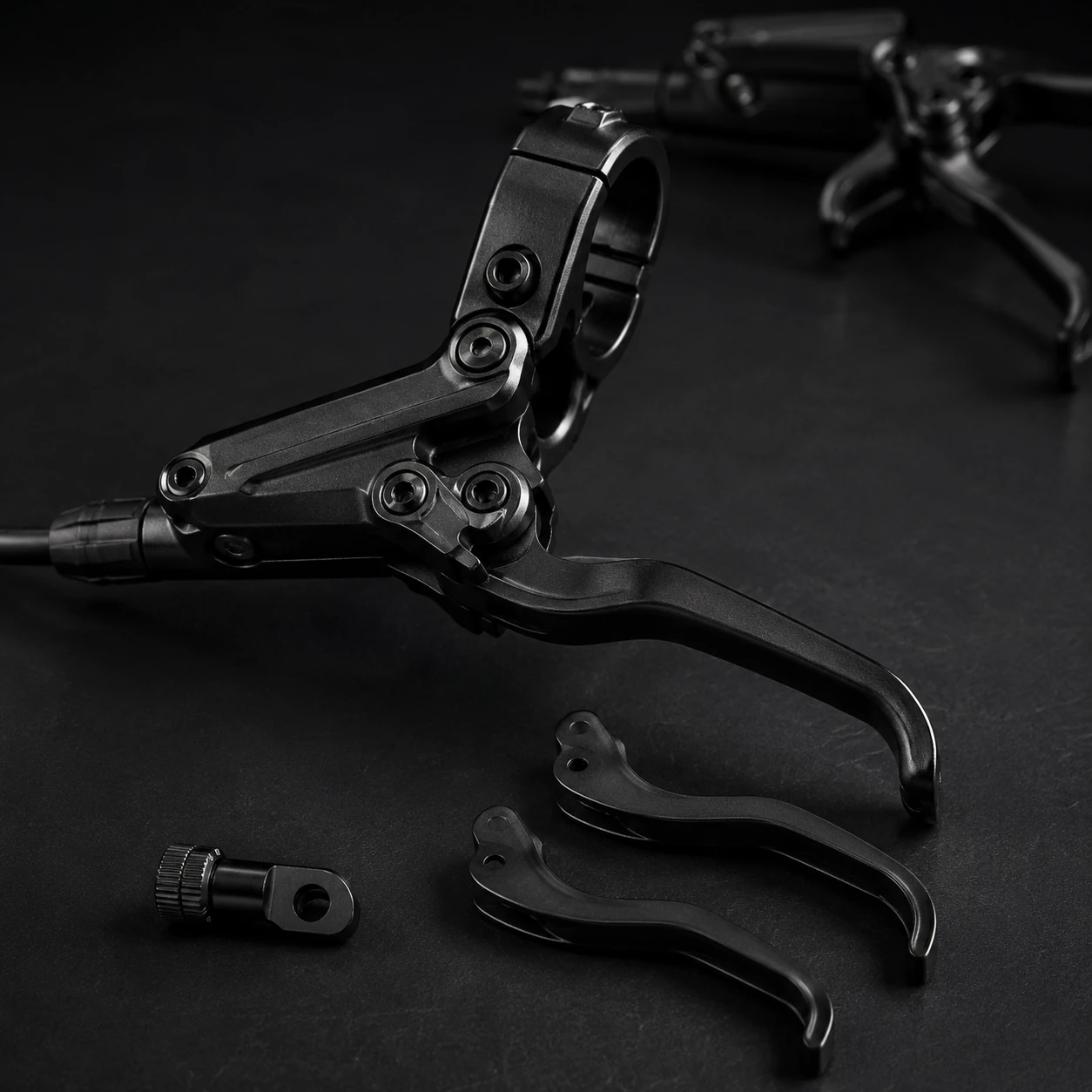

Brake Lever
Brake Lever
- Cast aluminum lever
- Aluminum or steel lever options
- 2-finger / 3-finger / 4-finger
- Reach adjustment
- Sensor-control options
- Parking function on selected model

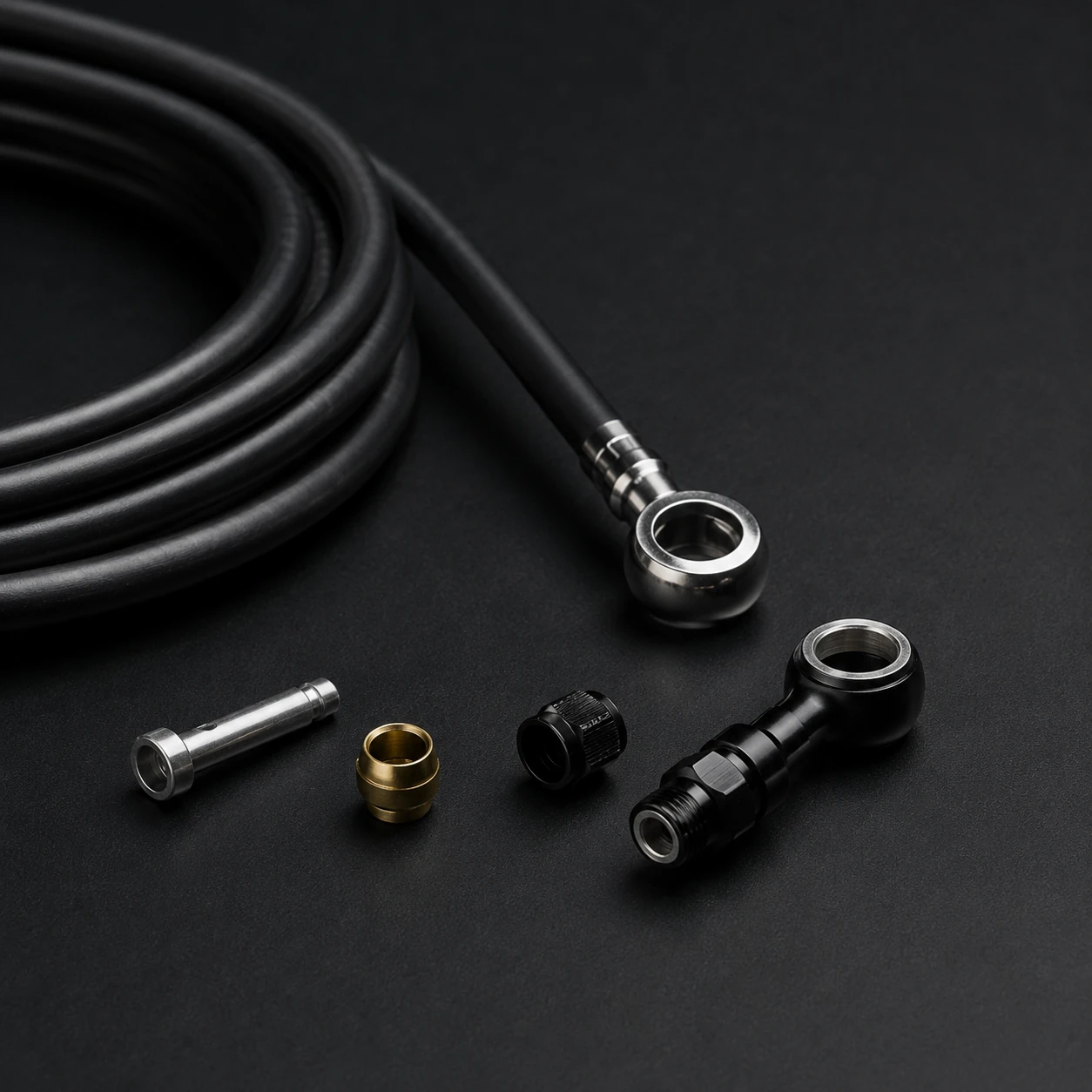

Hydraulic Hose & Connector
Hydraulic Hose & Connector
- Standard hose connection
- W2P free-angle hose connector
- Pin and olive
- Hose length to be confirmed
- Front/rear routing requirement

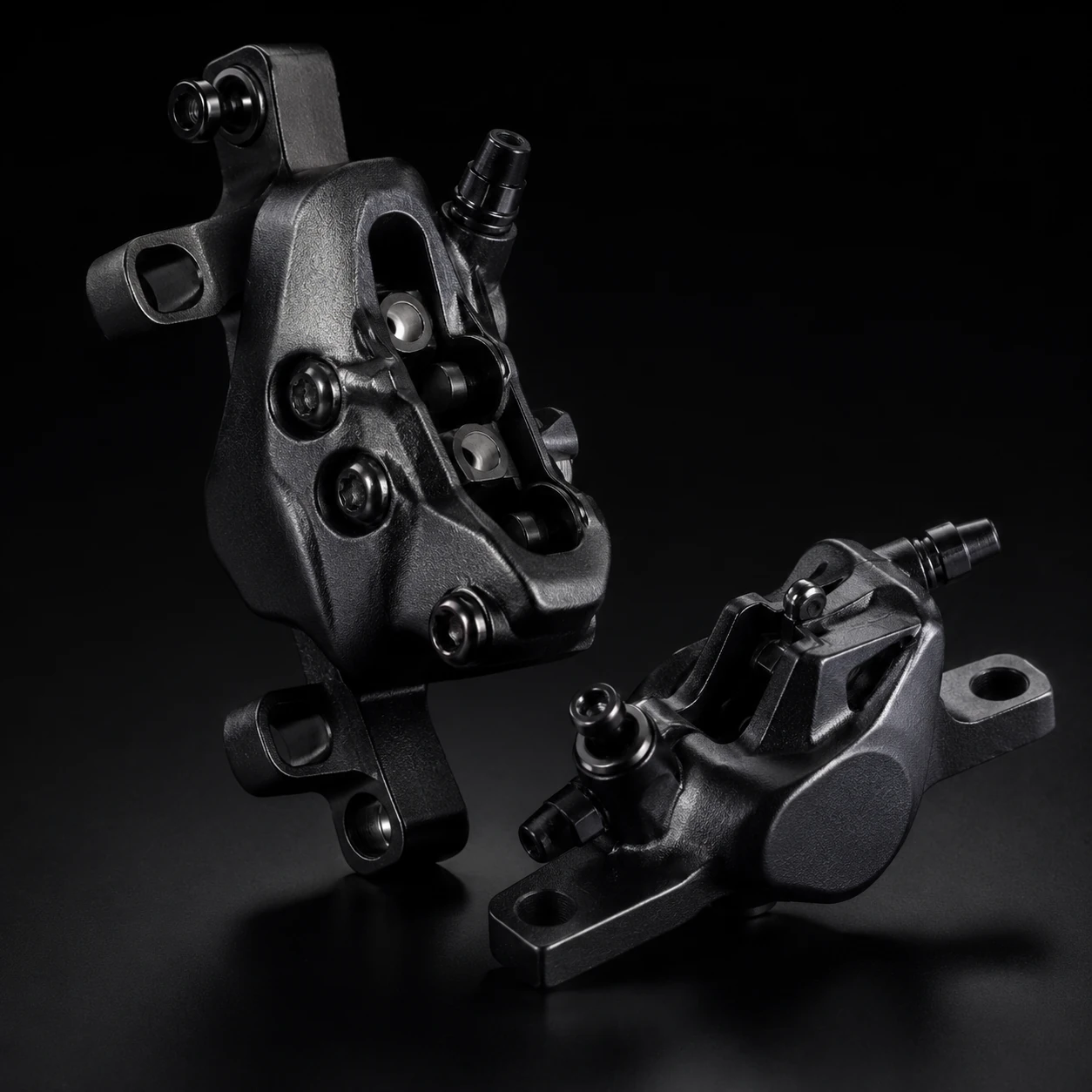

Brake Caliper
Brake Caliper
- Forged aluminum caliper
- 2-piston / 4-piston where specified
- IS / Post Mount
- Flat Mount road options
- Black finish

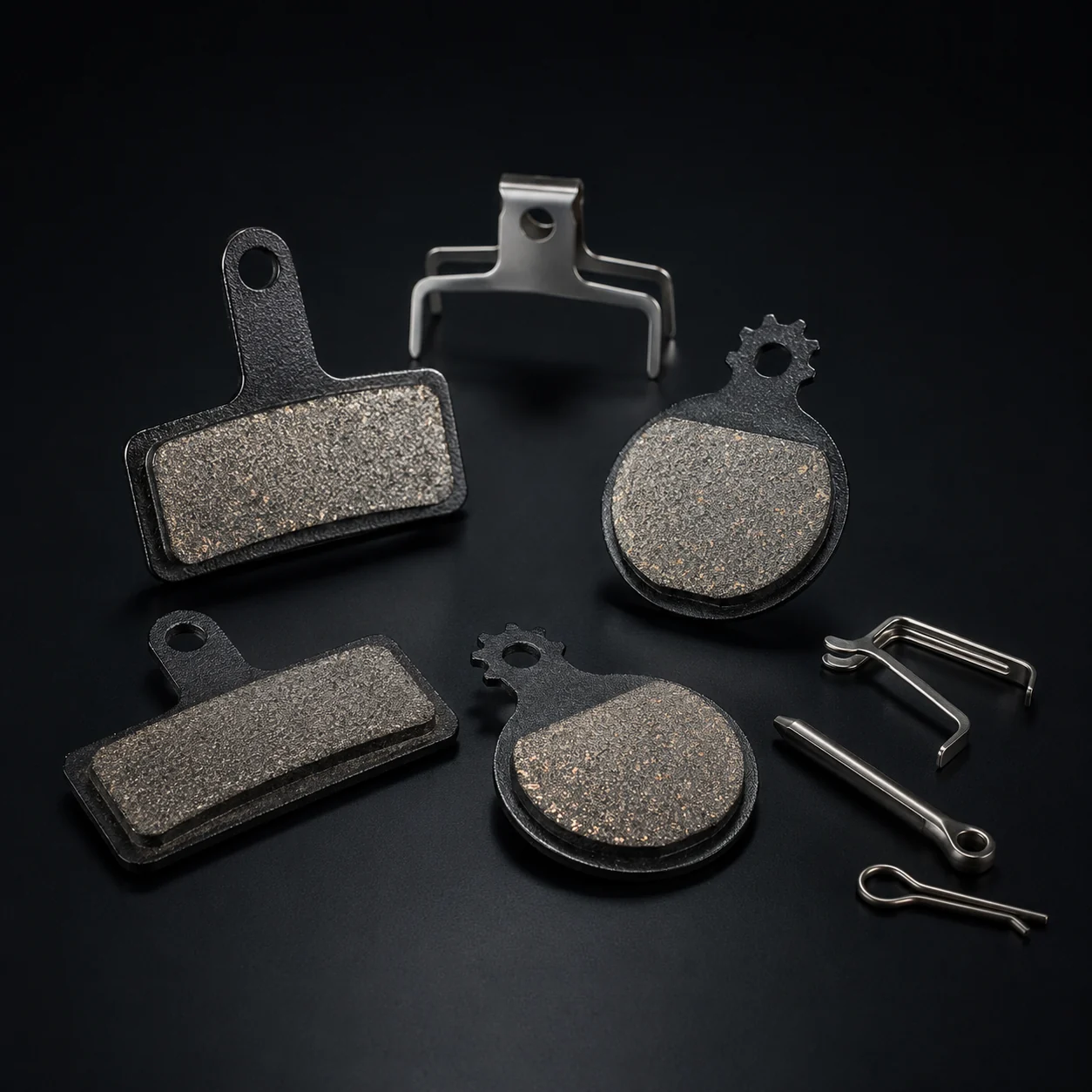

Brake Pads
Brake Pads
- P08 metallic compound pads
- P15 metallic compound pads
- Pad model must match the selected caliper

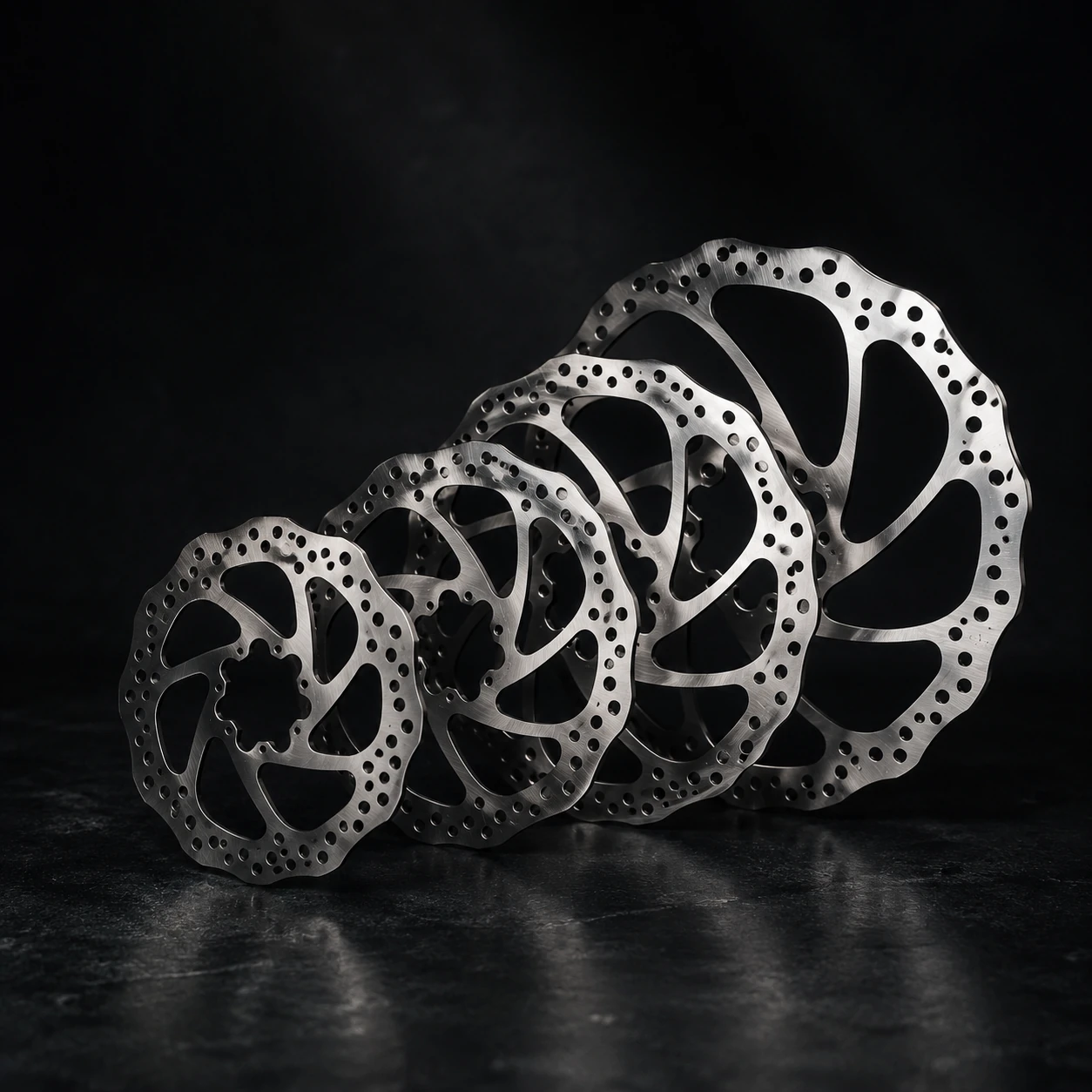

Disc Brake Rotor
Disc Brake Rotor
Available sizes for hydraulic systems:
- 140 mm
- 160 mm
- 180 mm
- 203 mm
* 100/120mm available in separate rotor category.

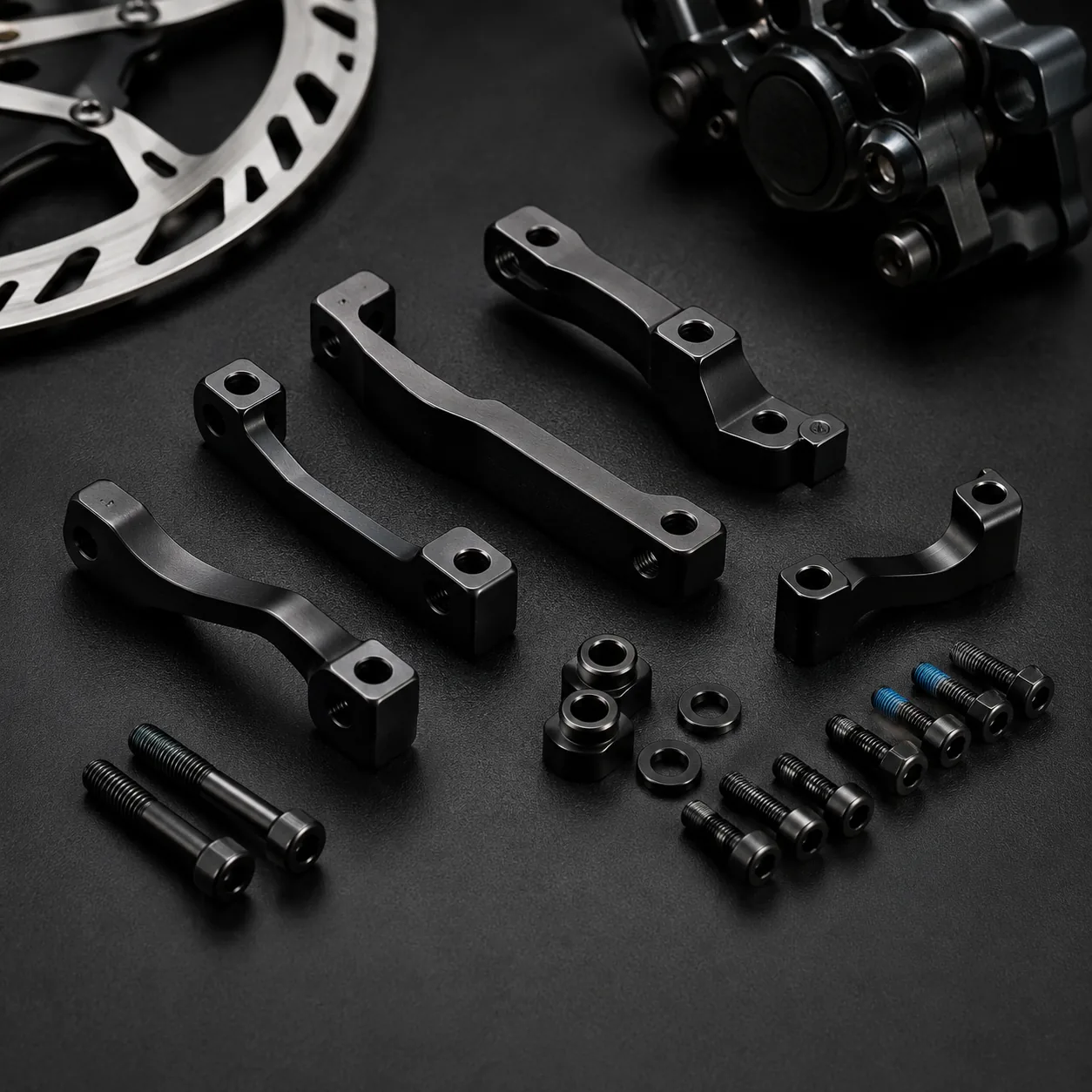

Mounting Adapter
Mounting Adapter
Adapter selection depends on the frame or fork interface, caliper mount, rotor diameter and front or rear position.
How to Select Hydraulic Disc Brakes for Your Bicycle Project
Sending only a product photo is often not enough for accurate brake matching. Please also provide the bicycle type, original model, mount interface, rotor diameter, hose length, front or rear position and expected order quantity to avoid assembly risks.
Upload Your Brake Photo or Specification| Selection item | Buyer should confirm |
|---|---|
| Bicycle application | MTB, e-bike, road, city, kids’ bike |
| Brake position | Front, rear or complete set |
| Piston configuration | 2-piston, 4-piston or model-specific |
| Mounting interface | IS, Post Mount or Flat Mount |
| Rotor diameter | 140, 160, 180 or 203 mm |
| Lever design | 2, 3 or 4 finger |
| Lever orientation | Left/right configuration must be confirmed |
| Hose length | Provide required front and rear length |
| Brake fluid | Confirm by exact model |
| Brake pad | P08, P15 or model-specific |
| E-bike requirement | Sensor connector and control requirement |
| Special function | W2P connector or parking function |
| Packaging | Neutral, paired set or customized packaging |
| Quantity | Sample, trial order or bulk quantity |
How Do Bicycle Hydraulic Disc Brakes Work?
A bicycle hydraulic disc brake transfers pressure from the brake lever through fluid inside the hose. The pressure moves the caliper pistons, which press the brake pads against the rotor. Model selection depends on the caliper, lever, hose, fluid, pad, rotor and mounting interface working as one matched system.
2-Piston vs 4-Piston Hydraulic Disc Brakes
Conclusion: Do not select a brake only by piston count. Rotor diameter, mount type, lever design, hose length, fluid system, bicycle load and intended riding application must be reviewed together.
| Selection factor | 2-piston options | 4-piston options |
|---|---|---|
| Catalog applications | General MTB, e-bike, kids and selected systems | Selected MTB and e-bike models |
| TESNO examples | E800, E500, M500, M520, M200, M220, C220 | E860XP, E860, E620, M620, M600 |
| Rotor selection | Depends on model and application | Depends on model and application |
| Procurement decision | Confirm bicycle load and target configuration | Confirm bicycle load and target configuration |
| Important note | Piston count alone does not confirm full compatibility | Piston count alone does not confirm full compatibility |
Hydraulic vs Mechanical Disc Brakes
Hydraulic disc brakes
- Fluid-operated system
- Requires system-specific fluid and service procedure
- Lever, hose and caliper operate as a matched system
- Available in TESNO’s MTB, e-bike, road and kids ranges
Mechanical disc brakes
- Cable-actuated system
- Cable tension and housing are key service items
- Lever, cable and mechanical caliper operate together
- Available as a separate TESNO brake category
Hydraulic Disc Brakes for Different Bicycle Applications
MTB
- • MTB hydraulic disc brakes
- • mountain bike hydraulic disc brakes
- • 2-piston MTB brakes
- • 4-piston MTB brakes
- • 140–203 mm rotor options
E-Bike
- • e-bike hydraulic disc brakes
- • electric bicycle hydraulic brakes
- • sensor-control brake lever
- • parking brake function
Road Bike
- • road bike hydraulic disc brake
- • Flat Mount hydraulic brake
- • 140 mm / 160 mm road rotor
- • 2-finger and 3-finger lever
Kids’ Bicycle
- • compact lever
- • reach adjustment
- • 2-finger control
OEM Hydraulic Disc Brake Sourcing for Bicycle Brands and Distributors
Model Matching
Review the original model, mounting interface, rotor size, lever, hose and application before selecting a catalog option.
Sample Confirmation
Confirm dimensions, appearance, lever operation, connection details, packaging and assembly requirements before bulk ordering.
Branding and Packaging
Logo, color and packaging feasibility can be reviewed according to the selected product and order quantity.
Mixed Component Sourcing
Combine brake systems, rotors, pads, adapters, forks, pedals and other bicycle parts in one purchasing list.
Hydraulic Disc Brake Inspection Points Before Shipment
Inspection and order-confirmation items can include:
Model and Specification Check
Model, front/rear position, piston configuration, rotor, and mounting bracket.
Lever Operation and Return Check
Brake lever stroke, return action, and overall assembly condition.
Hose and Connector Check
Hose, connectors, pins, olives, and W2P positioning.
Caliper and Pad Check
Caliper appearance, brake pad model, and clearance status.
Rotor and Adapter Matching
Rotor diameter, front/rear placement, and adapter specifications.
Packaging and Quantity Check
Labels, quantities, accessories, and packaging requirements.
From Brake Requirements to Bulk Order
Send Bicycle and Brake Requirements
Confirm Components and Specifications
Sample or Pre-Order Confirmation
Confirm Quantity, Packaging and Delivery
Order Follow-Up and Shipment
Frequently Asked Questions
What are hydraulic disc brakes?
Which hydraulic disc brake models are available?
Does TESNO offer 2-piston and 4-piston brakes?
Which rotor sizes are supported?
Are Flat Mount hydraulic brakes available?
Are sensor-control brake levers available for e-bikes?
Is a parking function available?
Do all models use mineral oil?
Are rotors and adapters included?
How do I choose the correct hose length?
Can I order samples?
What information is required for a quotation?
How should hydraulic disc brakes be bled?
